Bert van der Velde's launcher photos

Main Rocket Page Home Page

Bert van der Velde's launcher photos

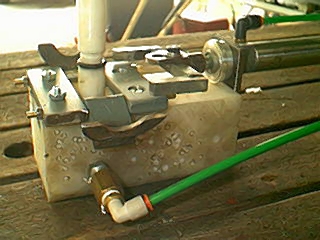

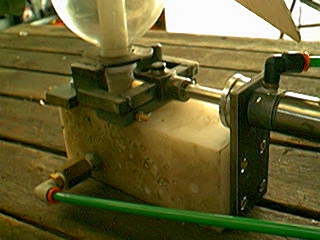

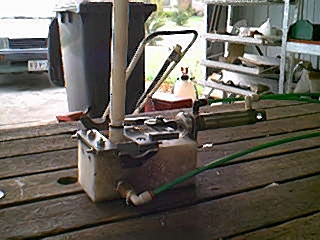

A local retired machinist sent me these photos of his launcher mechanism. They show a pair of jaws that fold inwards to surround the bottle above the flange, and a welded fork that holds them in. The fork is withdrawn by a pneumatic cylinder.
